Billmaudio mods on a Blues Junior

Karel-Mars

Hi friends

I have an exciting job to do: upgrade the mains transformer on a tweed Blues Junior and fit a whole bunch of mods. The transformer has been done. Now for the mods ?

K

MikeM

As long as you're up to date with all your work, awesome ?

Didn't reply to your e-mail but it's looking awesome ? Gotting just ignore the excitement!!

Manfred-Klose

pics ?

Karel-Mars

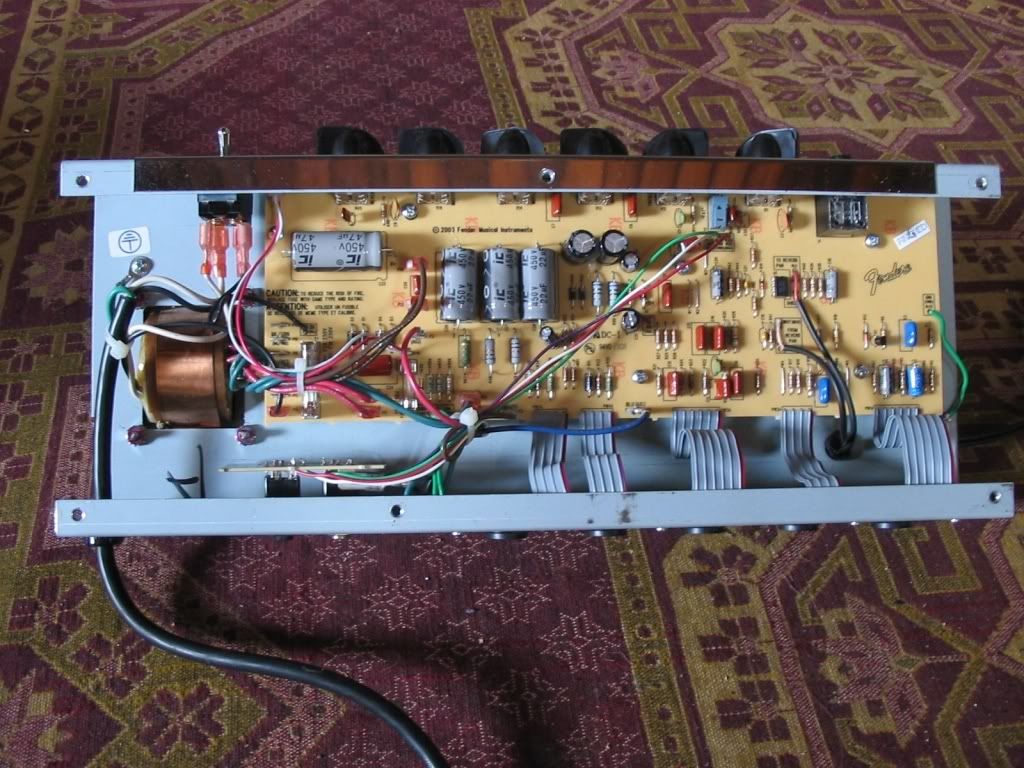

This is the chassis as original

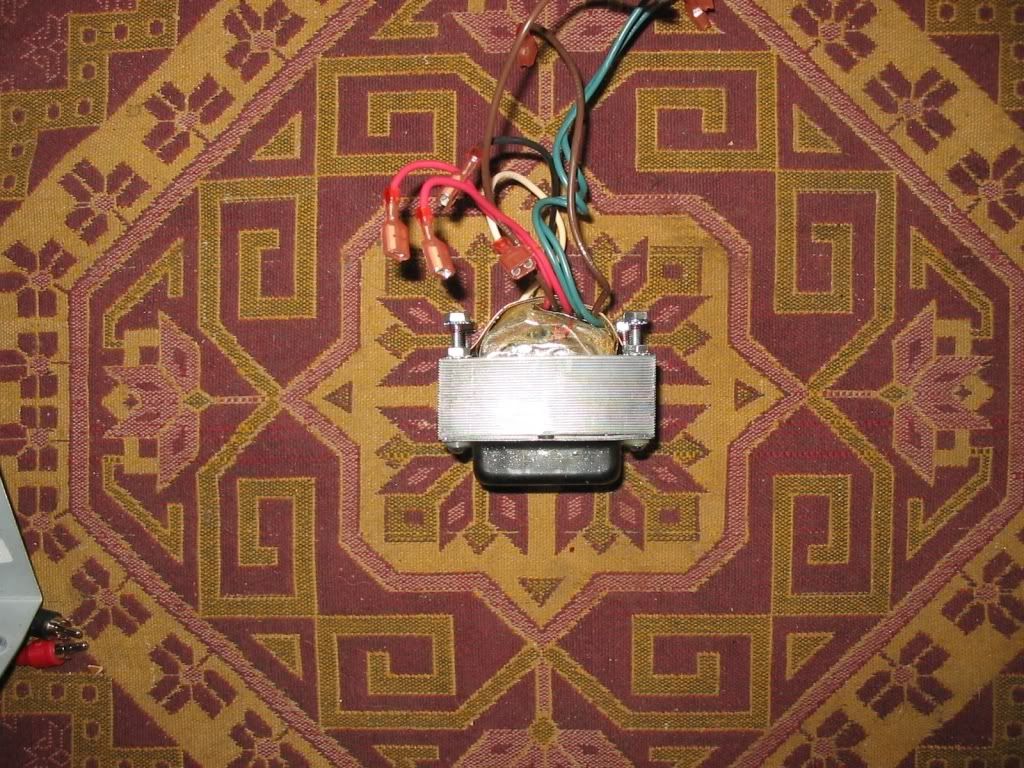

This is the USA transformer stripped out

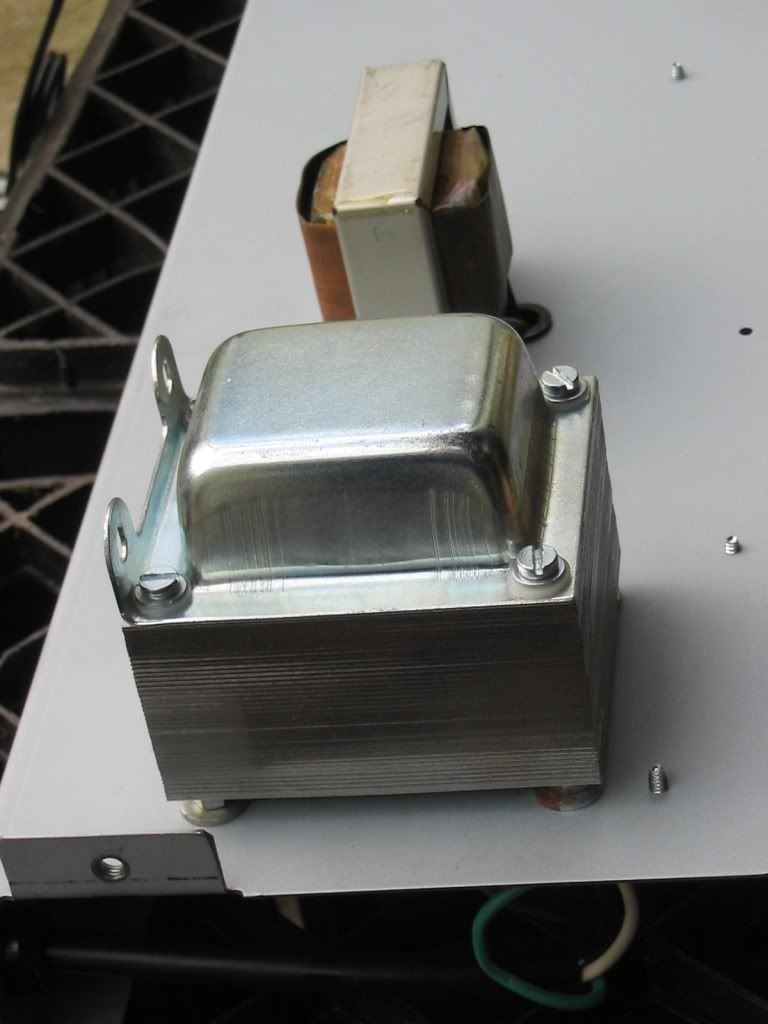

Mars 220V ttransformer. I had to beef it up a bit to fit all the windings on.

More to follow ?

MikeM

Can you get a pic of both transformers in so we can see the scale difference?

baseline

Question: is this your job or hobby, just for future reference, i have a mate with a problem with a Pevey amp so maybe he can contact you.
i take it the reason for the bigger transformer is so you don't get power clipping at the top end of the volume.

AlanRatcliffe

Karel can't plug his services outright - but a look at his signature will tell you all you need to know, and if you ask around the forum you'll find lots of happy customers - including myself.

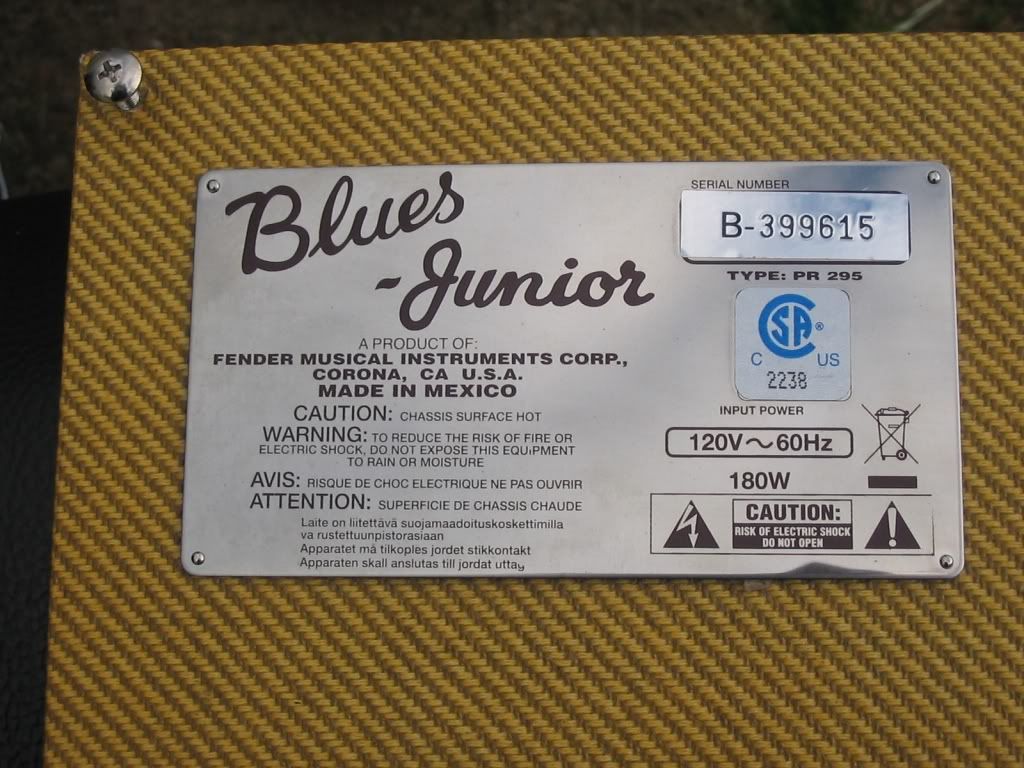

One reason for the bigger transformer is the mains voltage here is 220V and the original tranny was a US one that only had to handle 110V.

Karel-Mars

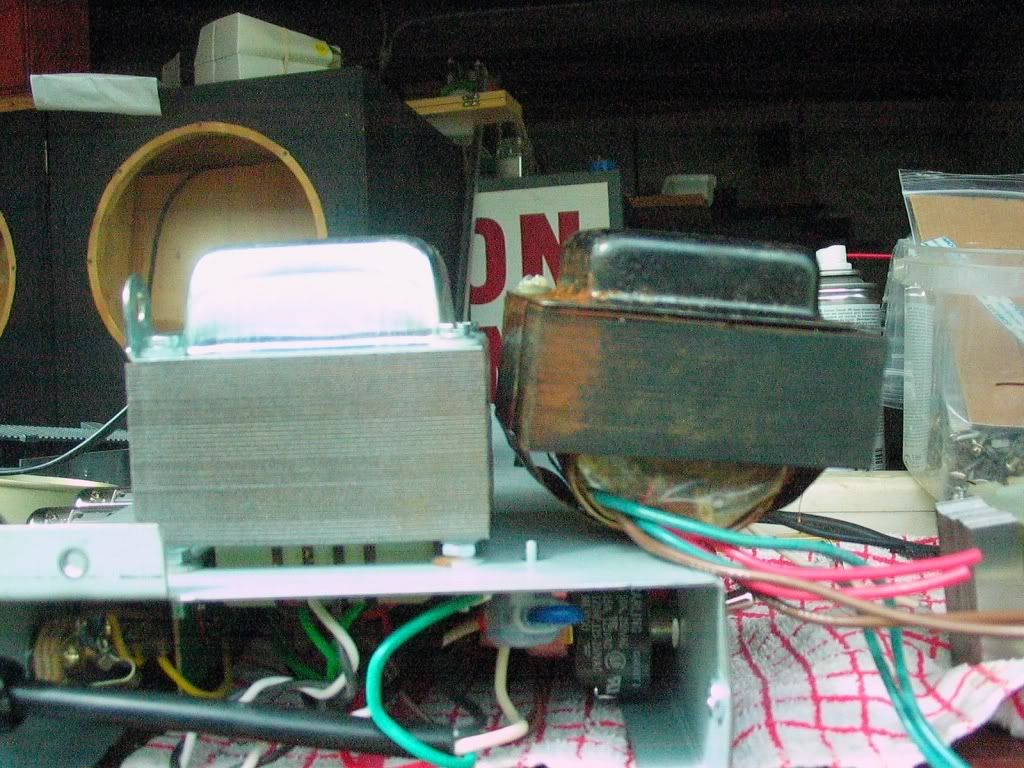

Hereś a pic with both transformers seen from the side

The original USA transformer is the black one on the right. I tried to take it apart with thinners, but the baby is baked solid :-[

Karel-Mars

All the mods have been fitted ?

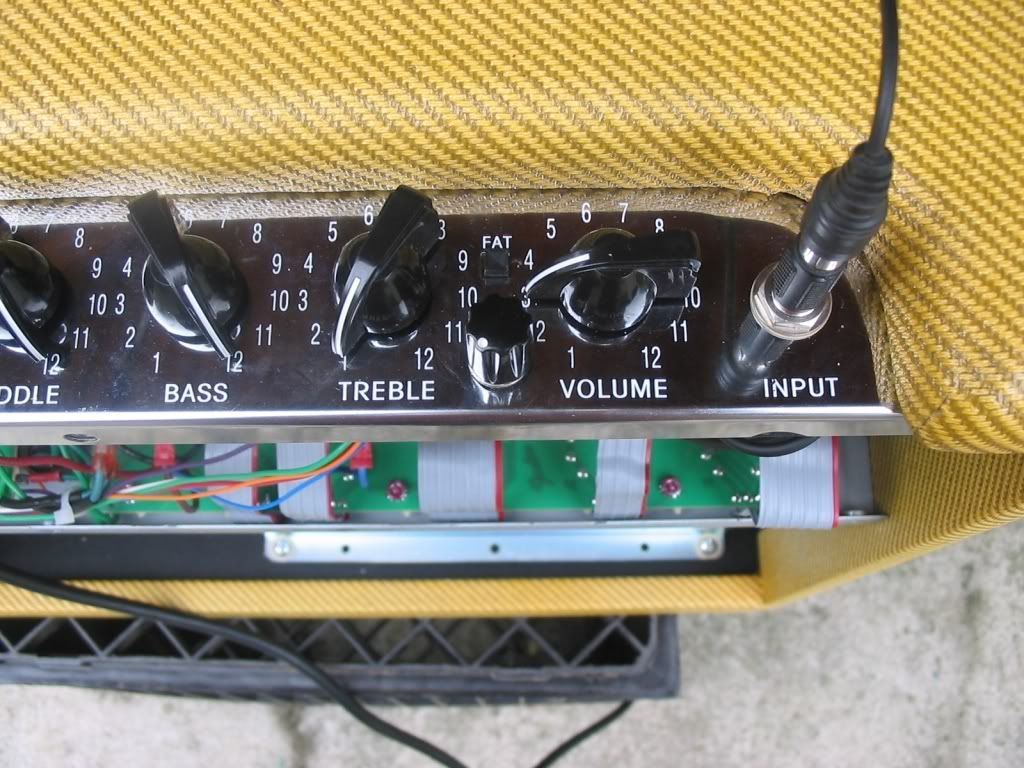

A presence control

The inside view. The Presence pot also has a pull-knob function to activate the Clean Boost mod. Hiding in the shade is Orange Drop Tone Stack upgrade. Included in the mod is the Twin Tone Stack mod which makes the Mids Control go to 0 for scooped mids sound.

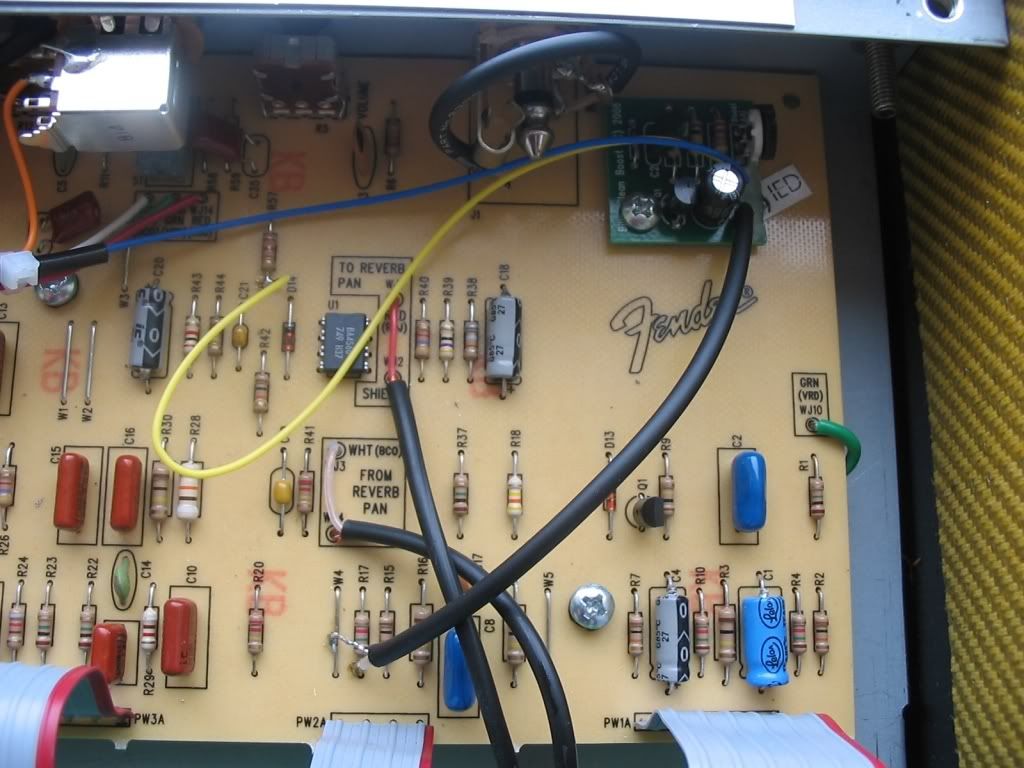

Here is the piggy back Clean Boost board

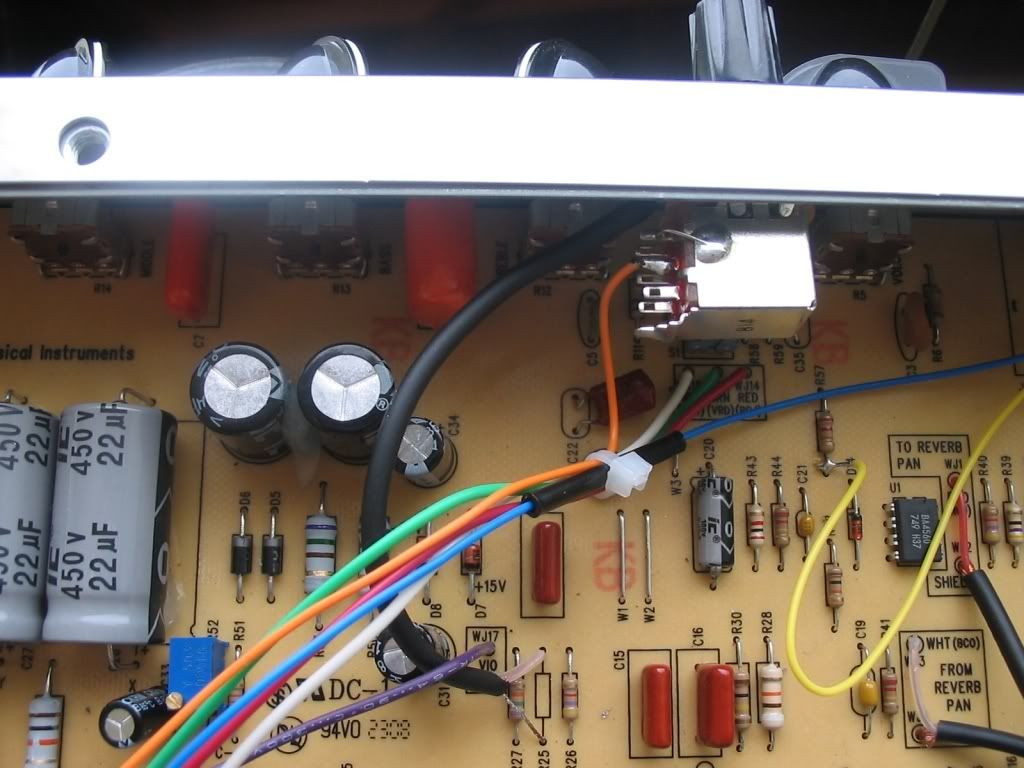

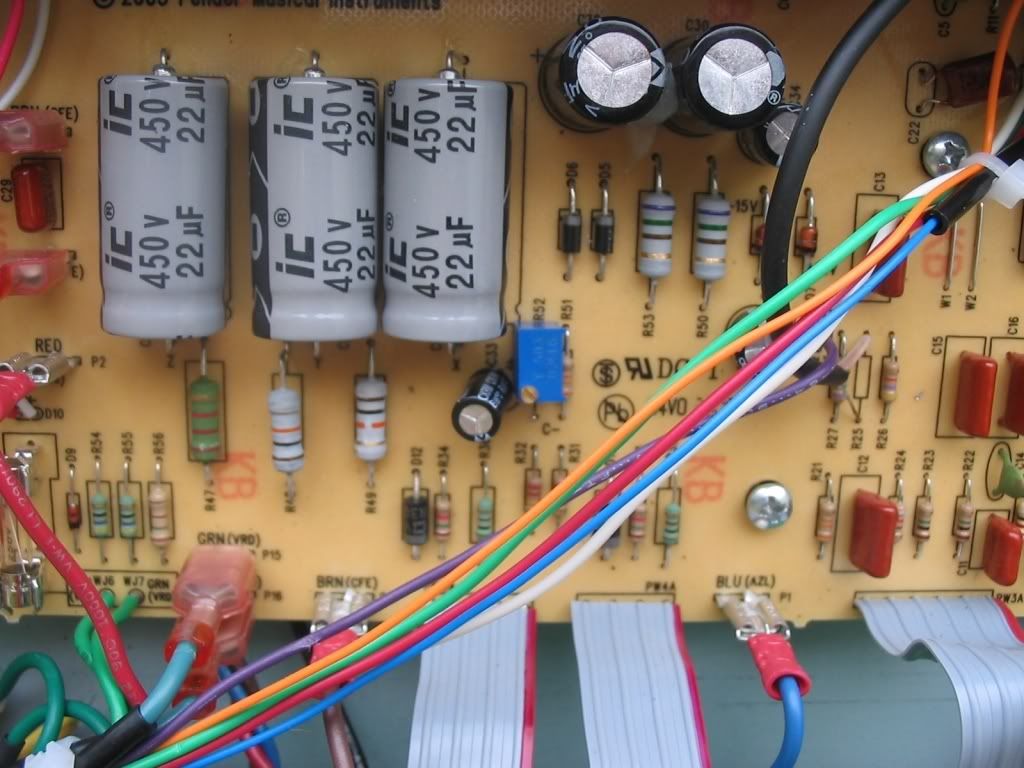

One of the nicest mods in the menu: An adjustable bias. The multi turn pot makes it easy to dial in the right idle current for the power tubes (EL84)

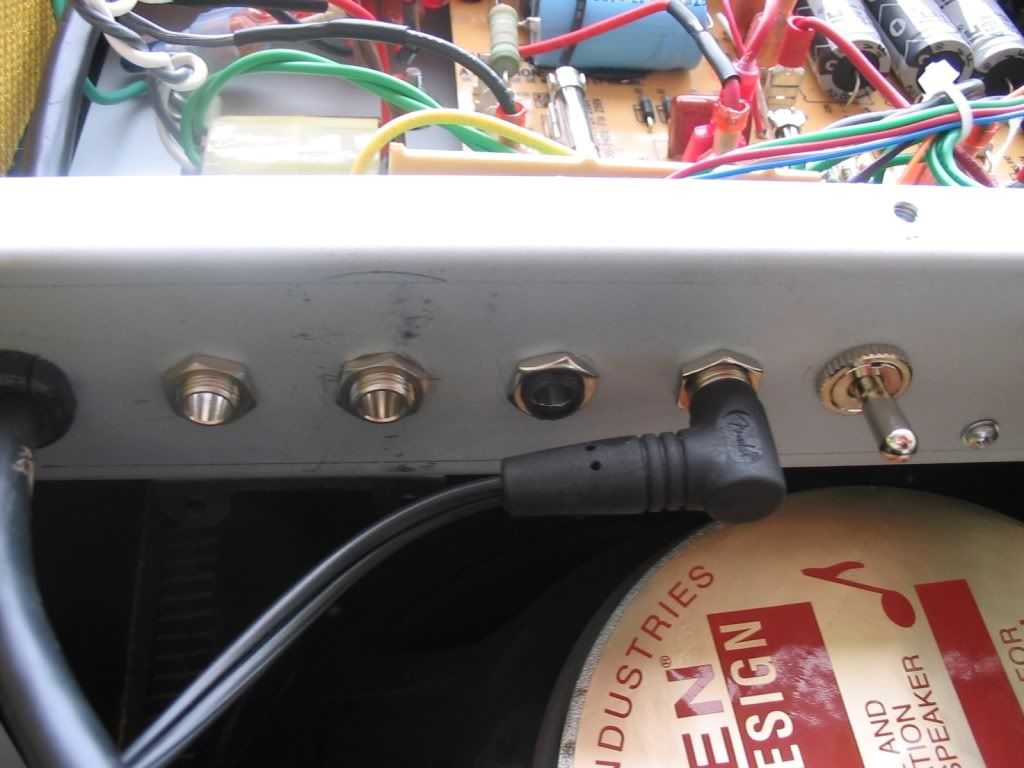

Outputs for Africa: (from left to right) Line Out, Aux Speaker Out, Original Footswitch socket (now a stereo footswitch for Clean Boost/Reverb), Original Speaker Out and 4/8ohm Speaker impedance selector

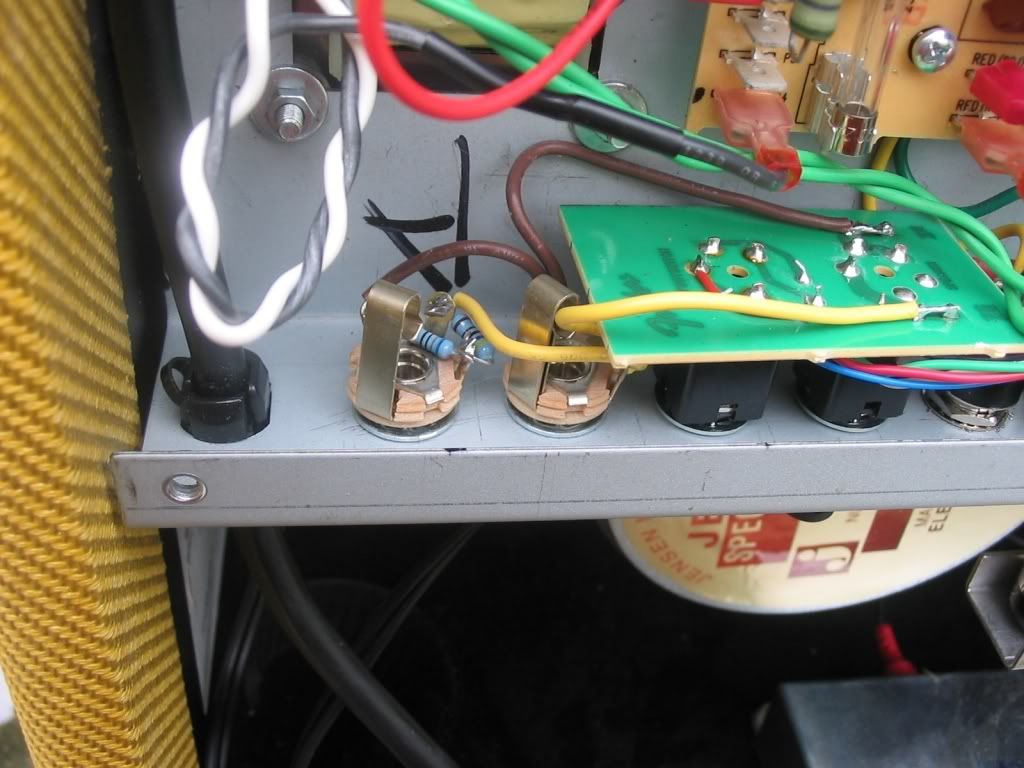

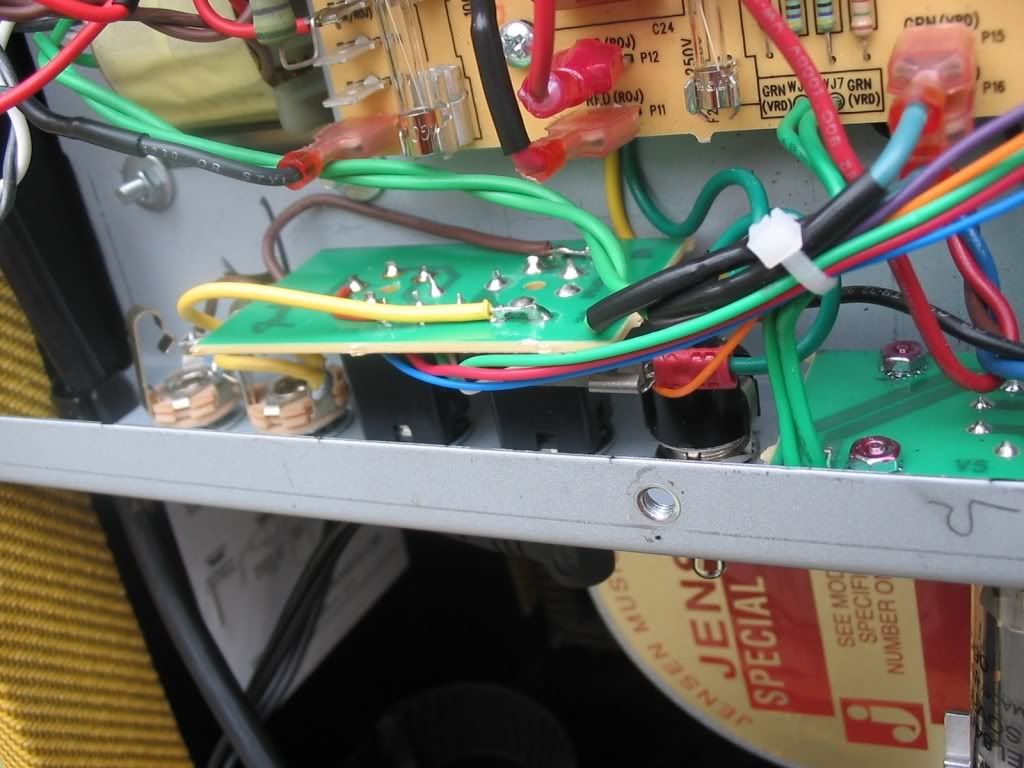

Inside view of the same

Alternate view

guitarboy2828

SICK!!!! That looks awesome.. Any possibilities of sound clips? it would've been cool if you did some before and after clips! ?

Joop

Just for the record, I am the lucky guy that owns this amp, and it is probably the best money I have ever spent on gear. This little amp rocks and the tone is almost better than my Bassman! See message from BillM himself after I sent him the URL for this site:

Hi Joop,

Wow, that's great! It looks like he did a very neat, thorough job. I'm
glad to hear that you're enjoying the tone, too.

Thanks for the feedback. My compliments to Karel.

- Bill

So for anyone out there needing any mods or repairs done to your amp, Karel is the man!

aja

Joop, I take it you already have the amp back? get some sleep man!

Joop

AJA, what are you doing up so early? I have an excuse, I work the nightshift.

aja

Joop wrote: AJA, what are you doing up so early? I have an excuse, I work the nightshift.

I have an excuse too! I work the daynightshift - an engineering student during exam time ?

Joop

Best of luck! I did 6 months of Civil Engineering at Stellenbosch before I saw the light!
