Manny Tele Build #1 - The Pine and Oak Tele

Manfred-Klose

ok, #1 means this is my first tele build and i will be building alot more over the next few months(for myself and for some friends)

no i am going a bit wild and building the dream guitars that always wanted in my mind, but that doesnt exist.

#1 is my first test run to see if everything works out and that my math side is correct.

Conclusion: it was a big success and i played a gig with this guitar on friday and it killed!!!!

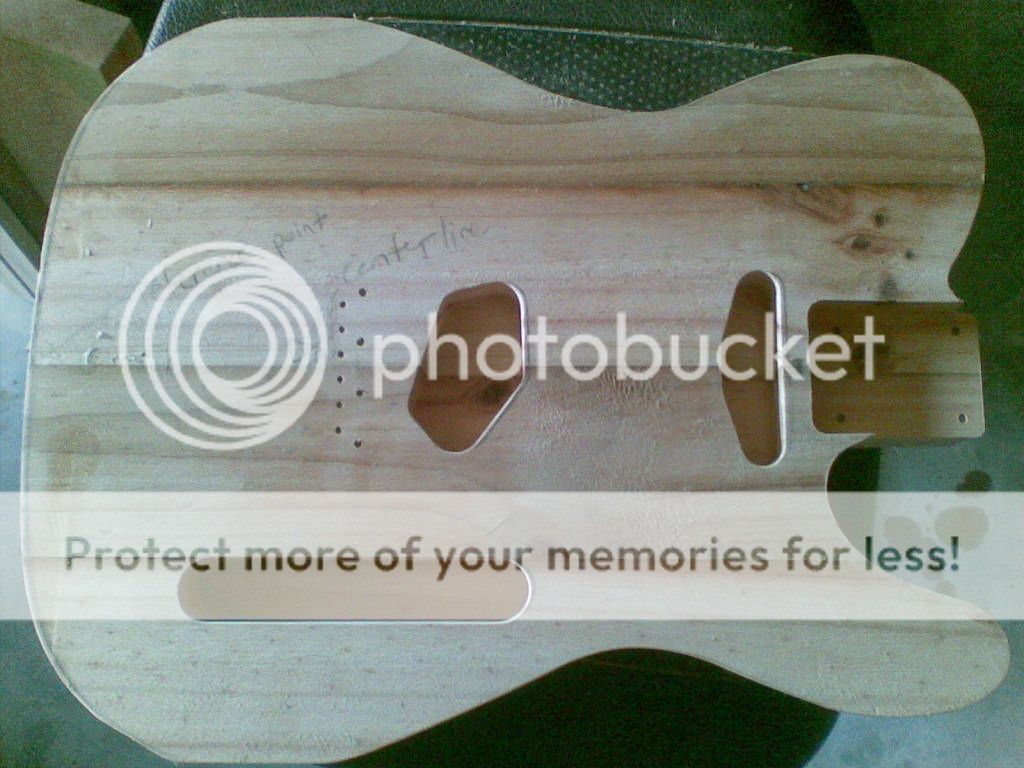

i kept track of my time, i did all of this under 24 hours. the neck and body i cnc'd. the neck took 9min and the body took 15min. for fret slotting and fre pressing i went to Brian fanners workshop and he let me use his fret slot cutter and press.

Specs:
SA Pine body, 4 piece
Oak neck, 2 piece(sprayed with nitro cell)
Wilkinson compensated bridge
Wilkinson EZ lok tuners
all the hardwar i got from Terry D
Alpha pots
some chises pickups that i am yet to swop out for some toneriders

Why did i go with pine and oak ? why not ?
everyone told me oak would be a dab choice for a neck, it turns out to be an excellent neck
SA Pine ? apparently its bad choice for body wood and that oregan pine is the one to go for, it sounds good, just not as strong, but it works.

PS: the oak neck use to be an old desk top in a place i cant really mention on the internet, and the pine i found lying on a farm in the middle of nowhere.

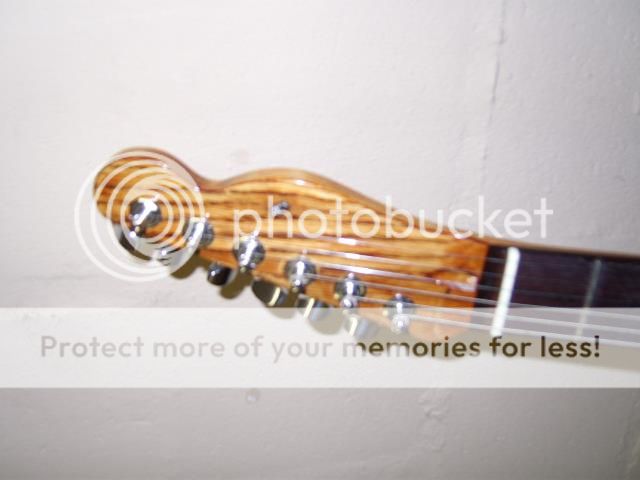

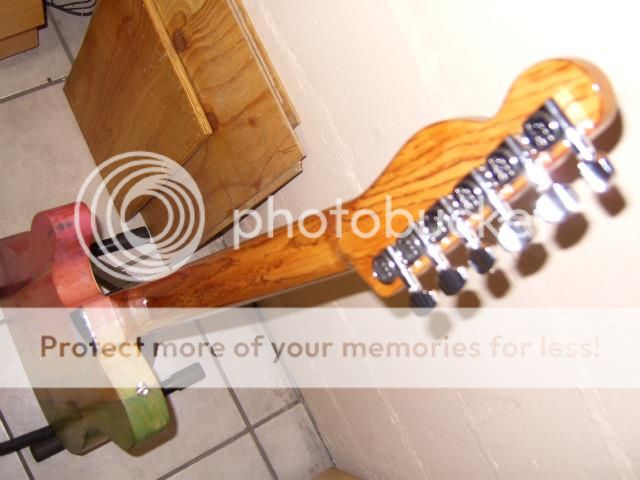

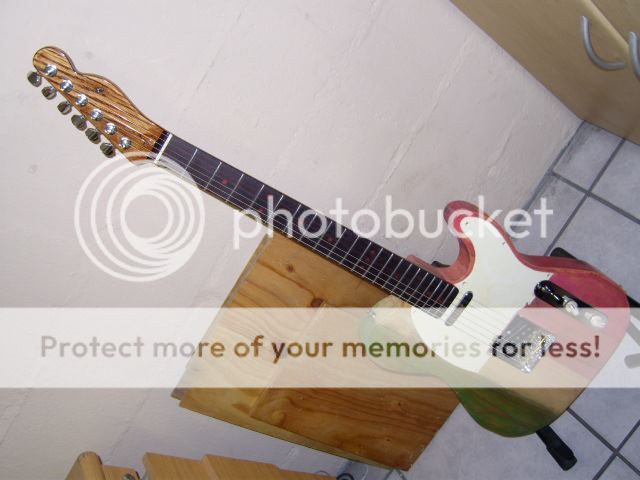

the colors on the guitar, i love it !!!!!

sure i could have probably gone with a better finish.

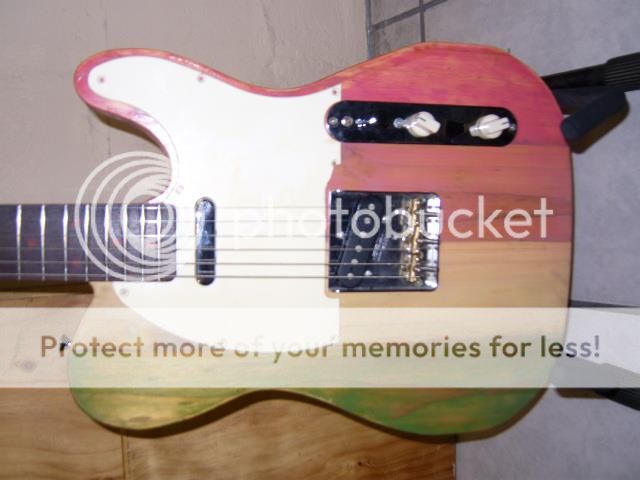

each plank is stained a different color with danish oil on top(thanks for neon gecko and Wizard helpng me decide on the funky colors )

and i get get over how good the guitar sounds acoustically

ok enough about my wining here is the pics:

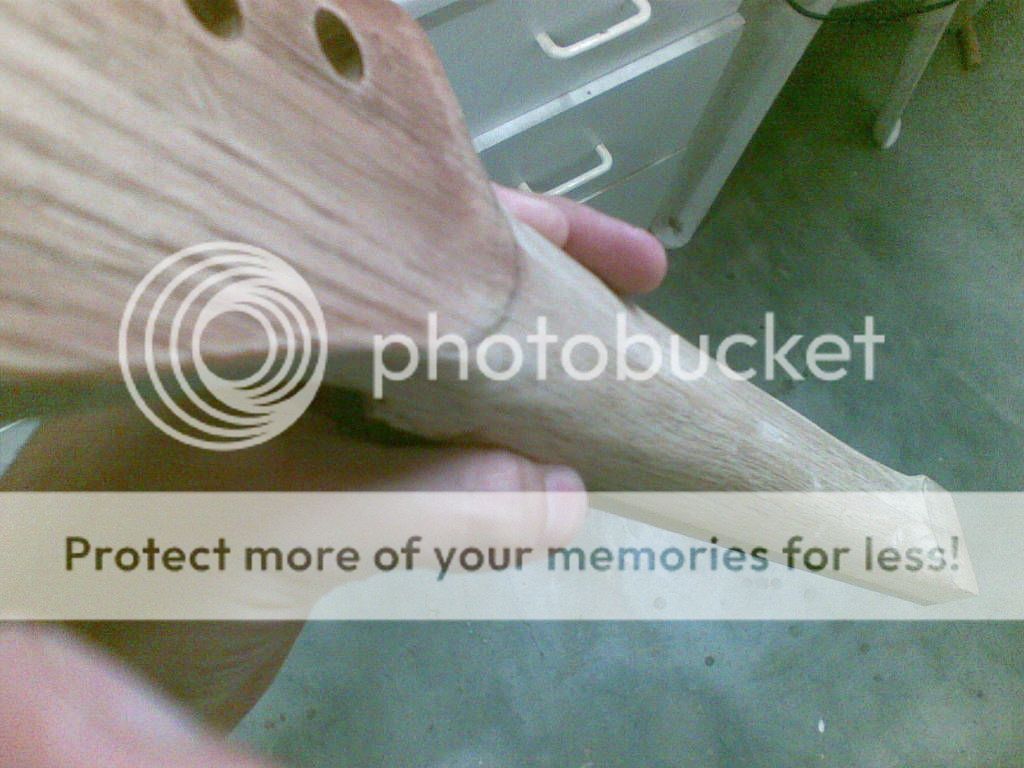

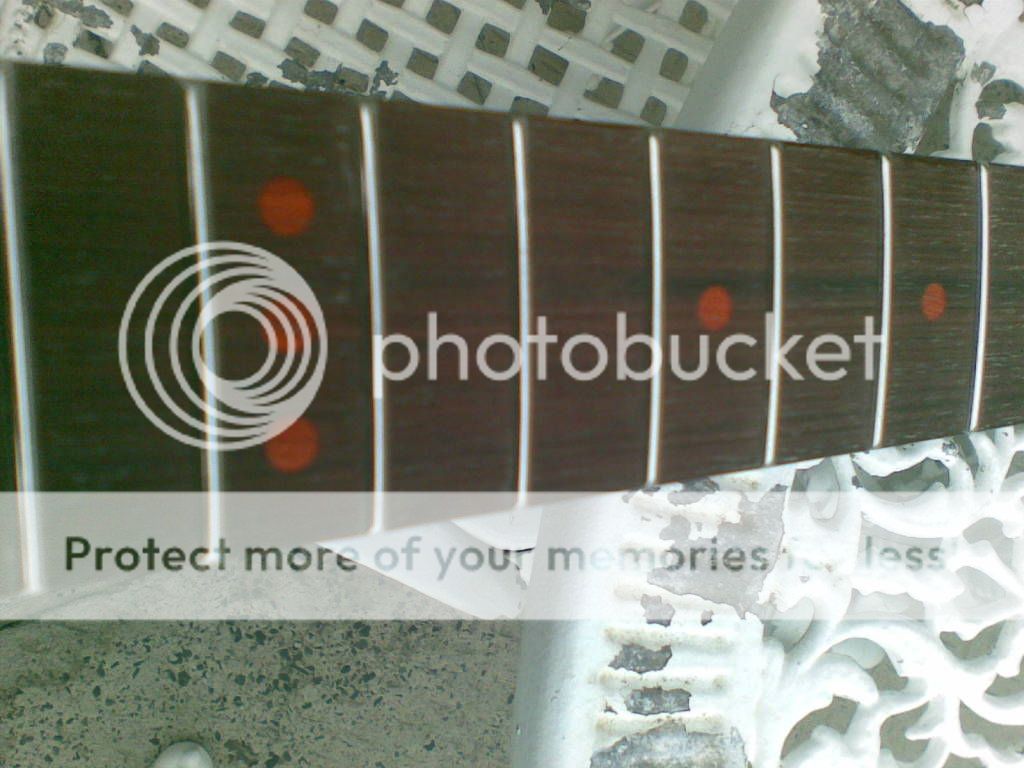

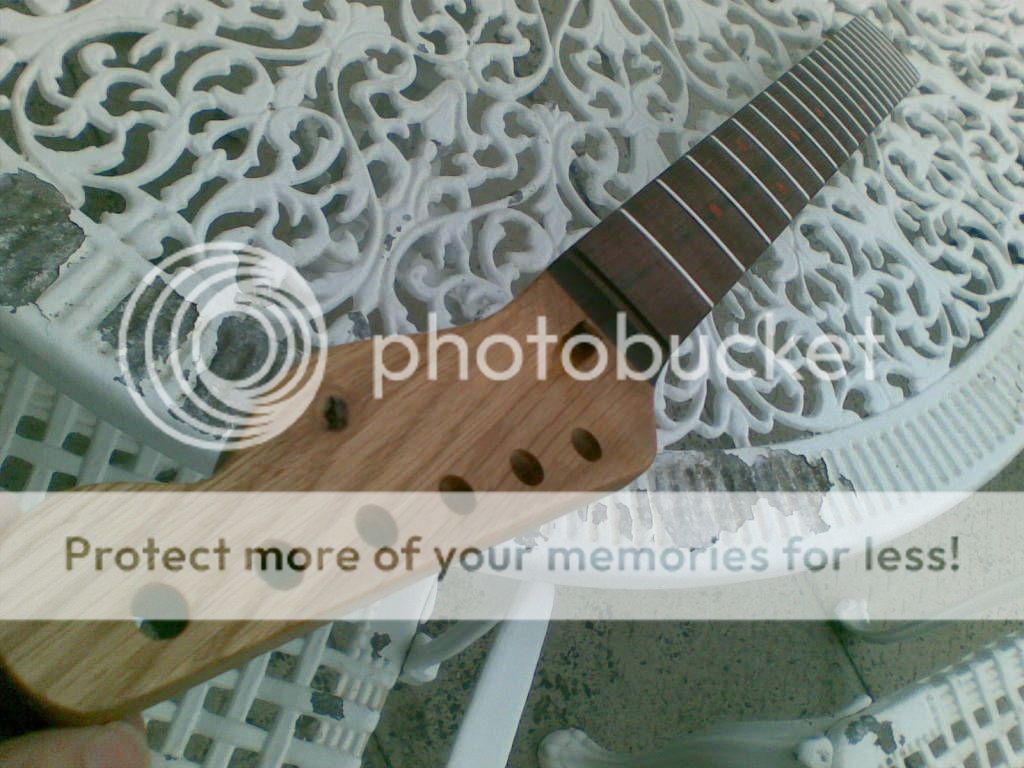

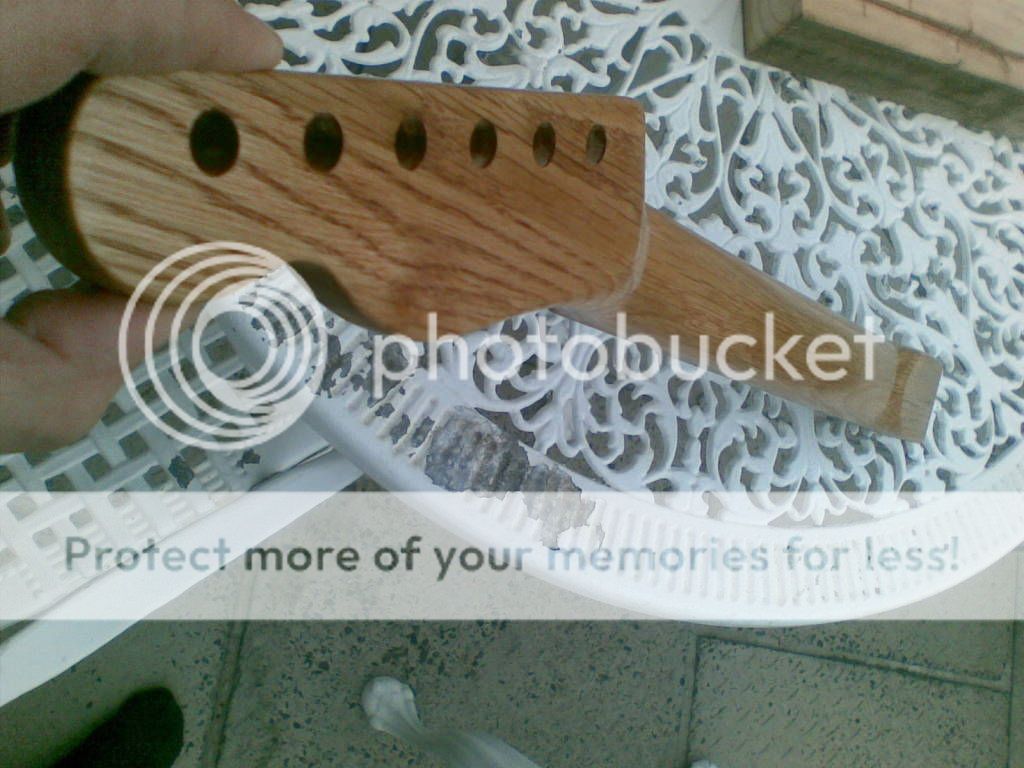

few coats of sanding sealer

Manfred-Klose

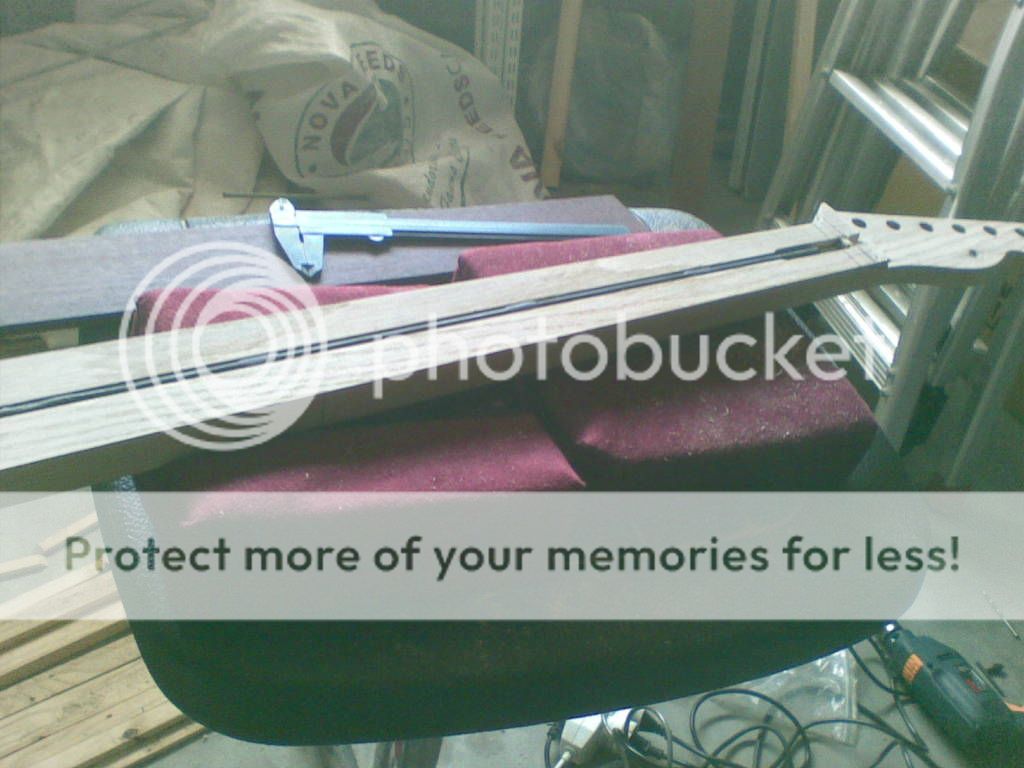

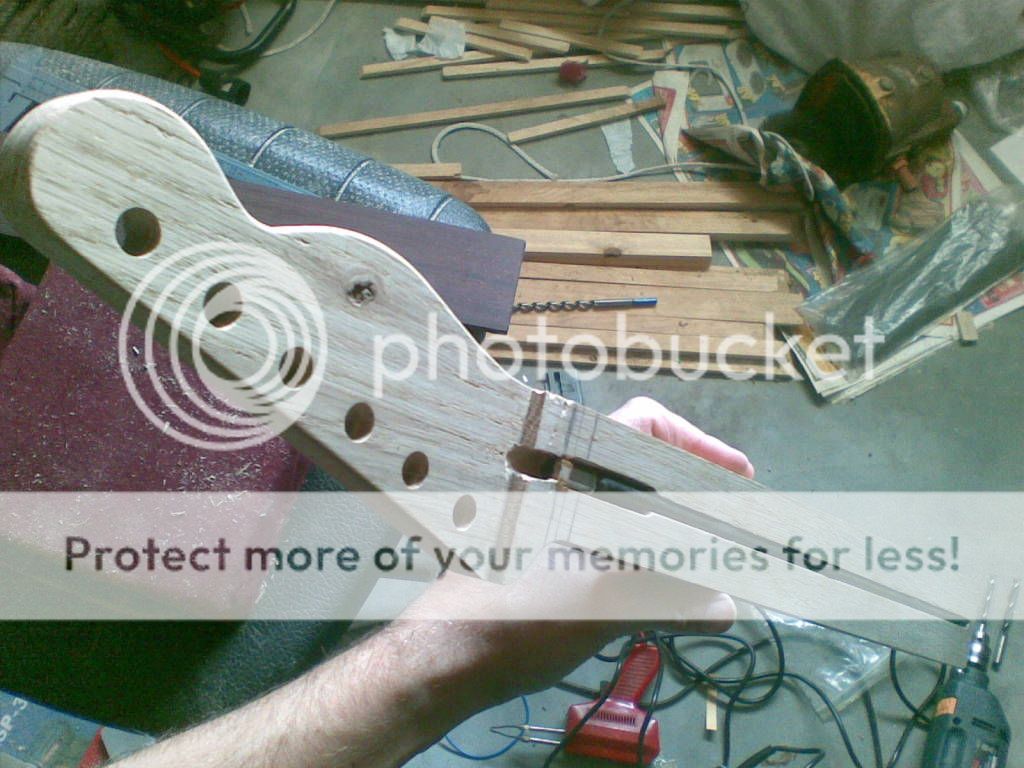

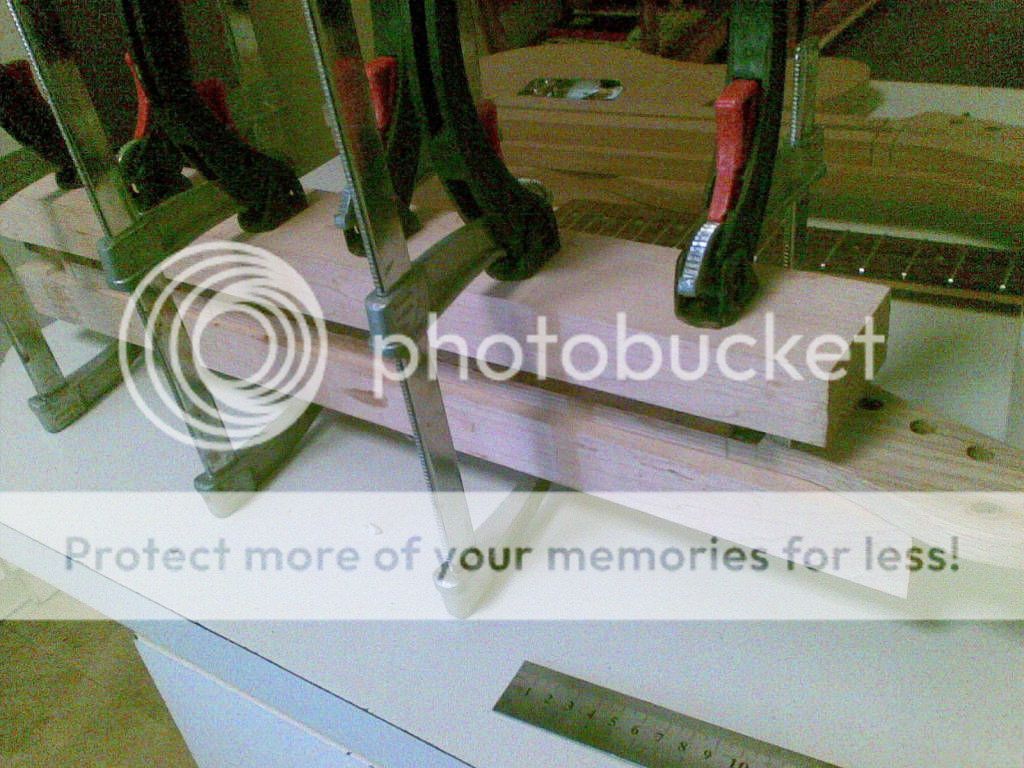

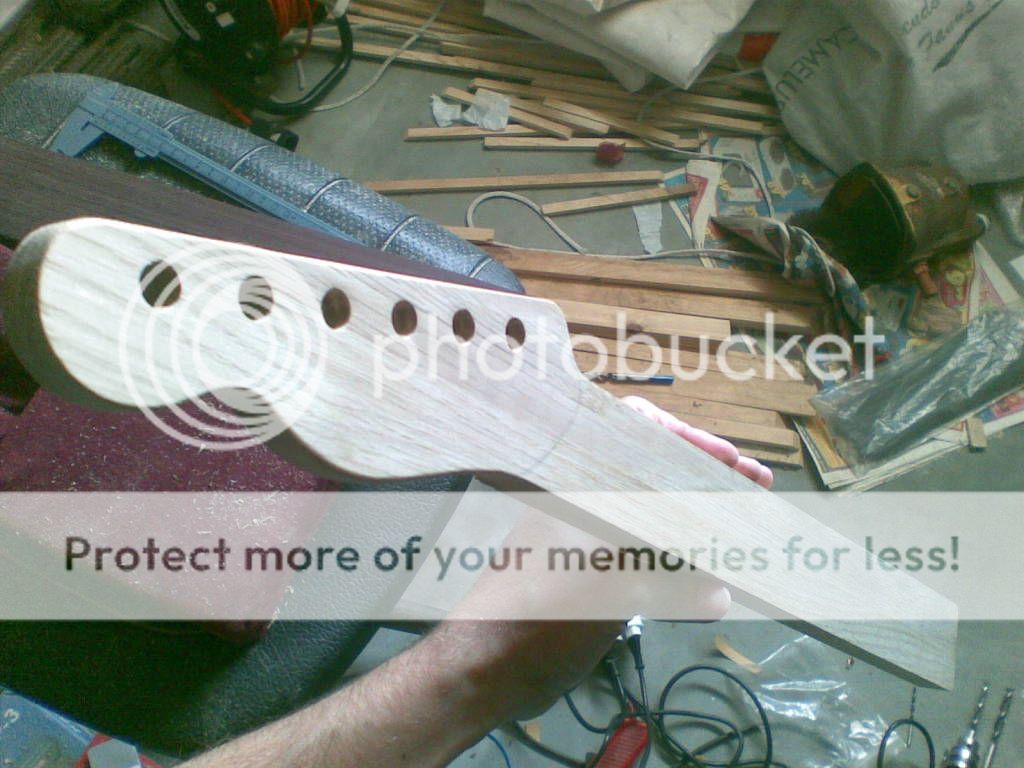

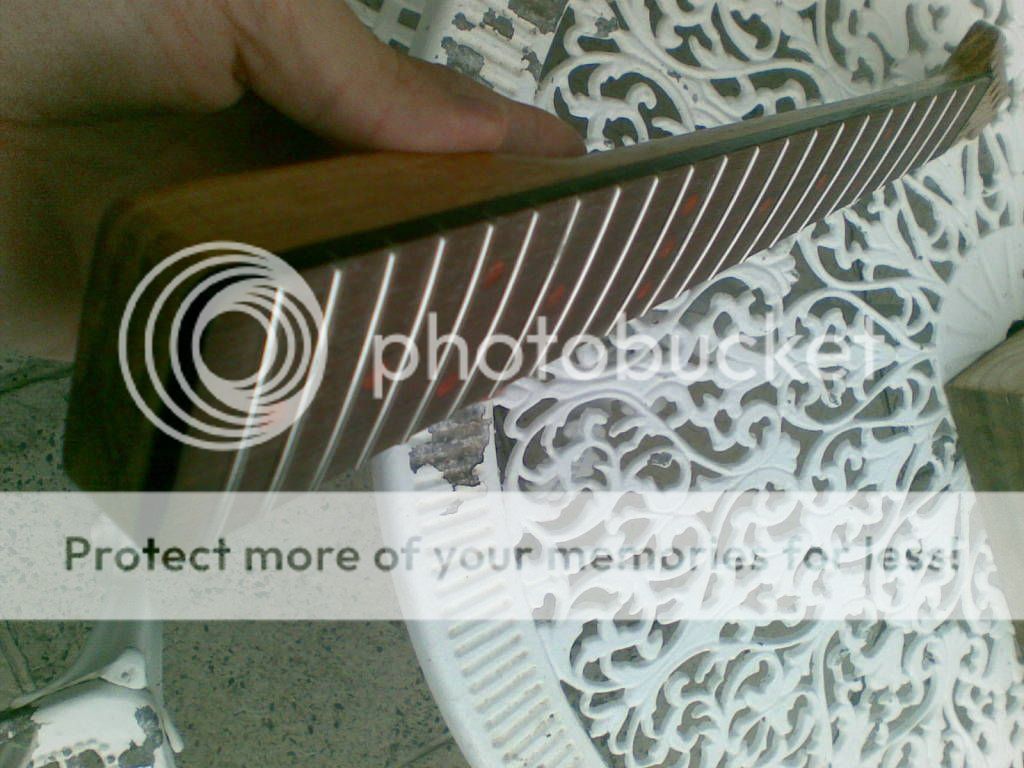

clamping the neck

Manfred-Klose

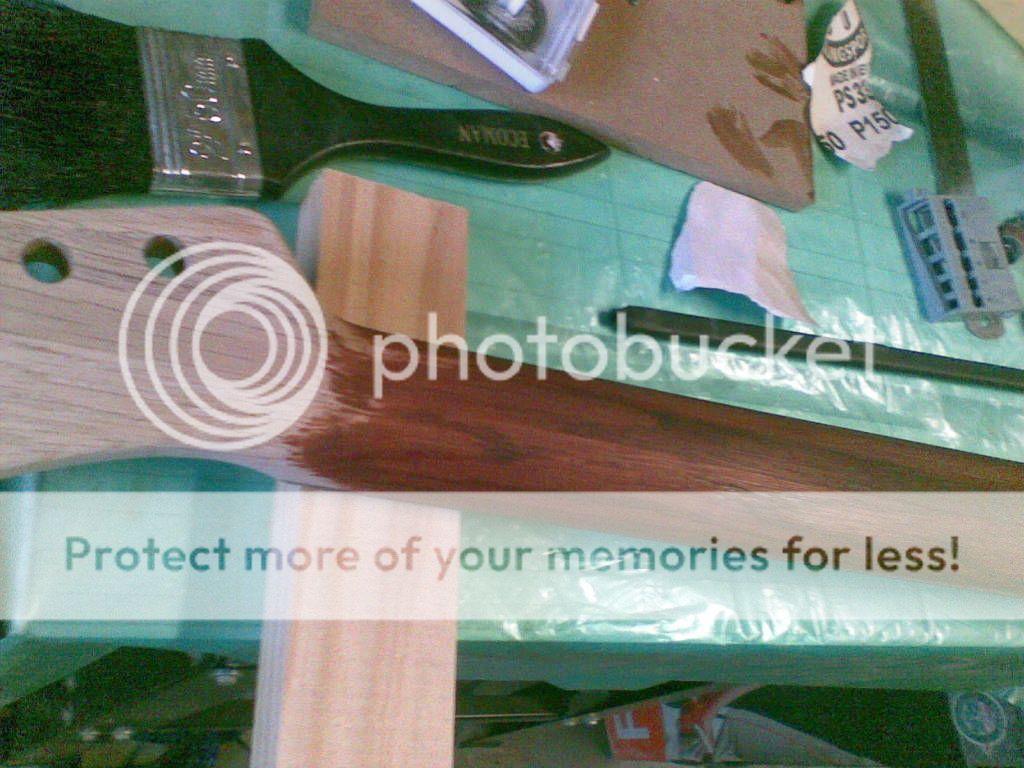

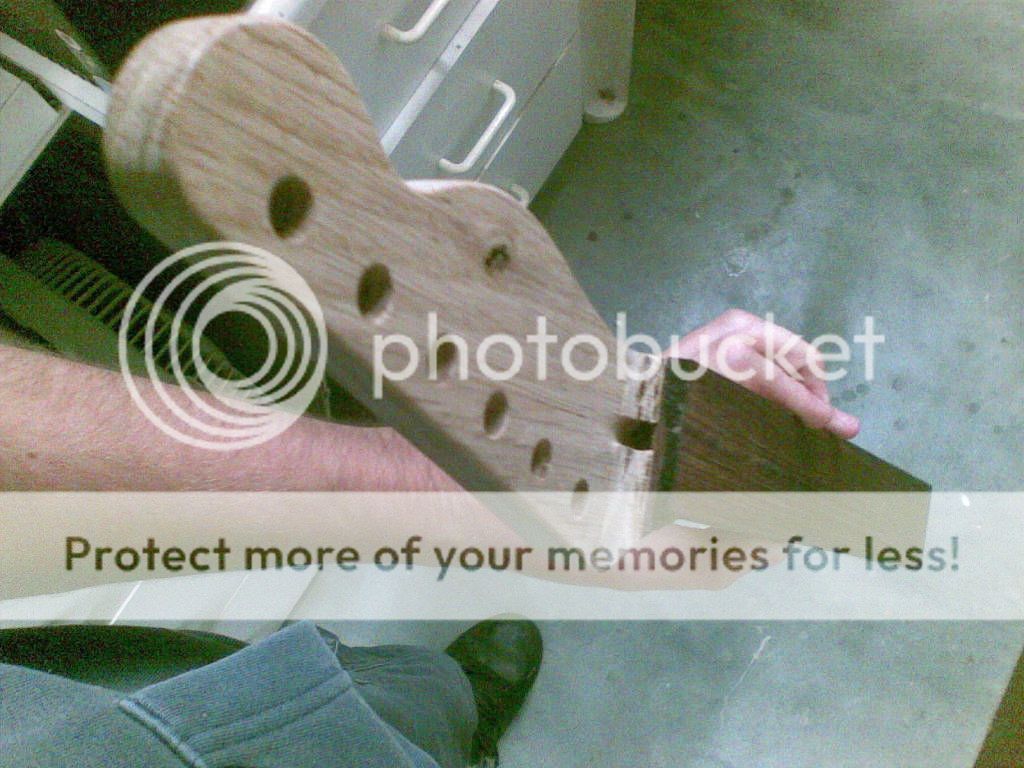

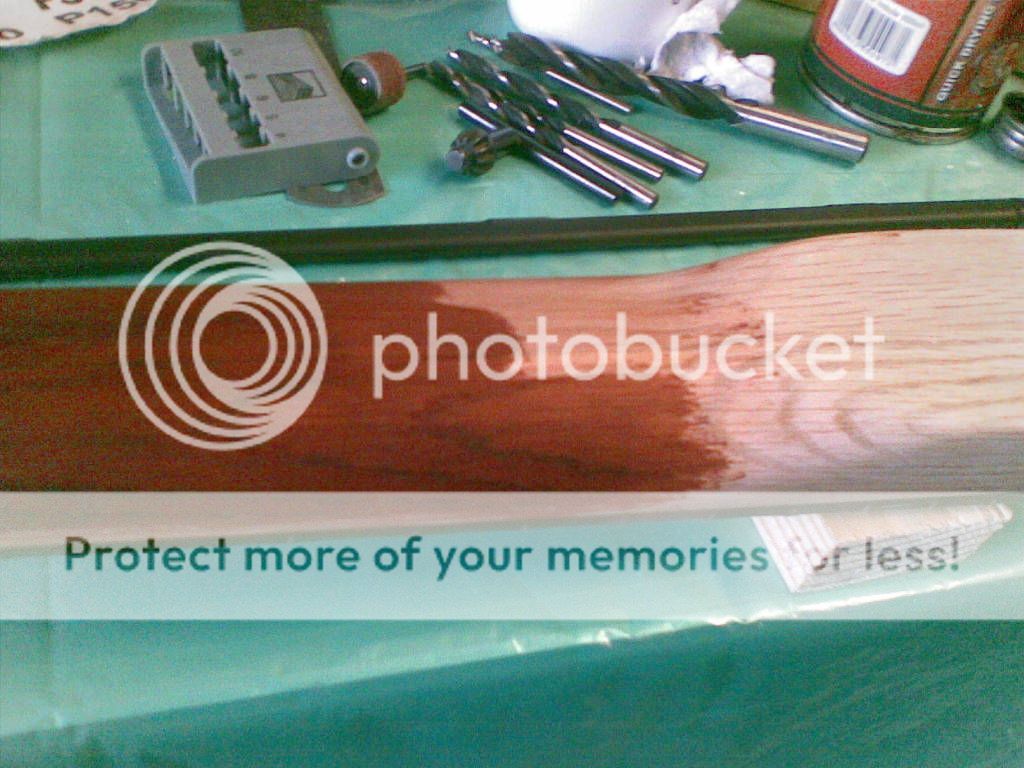

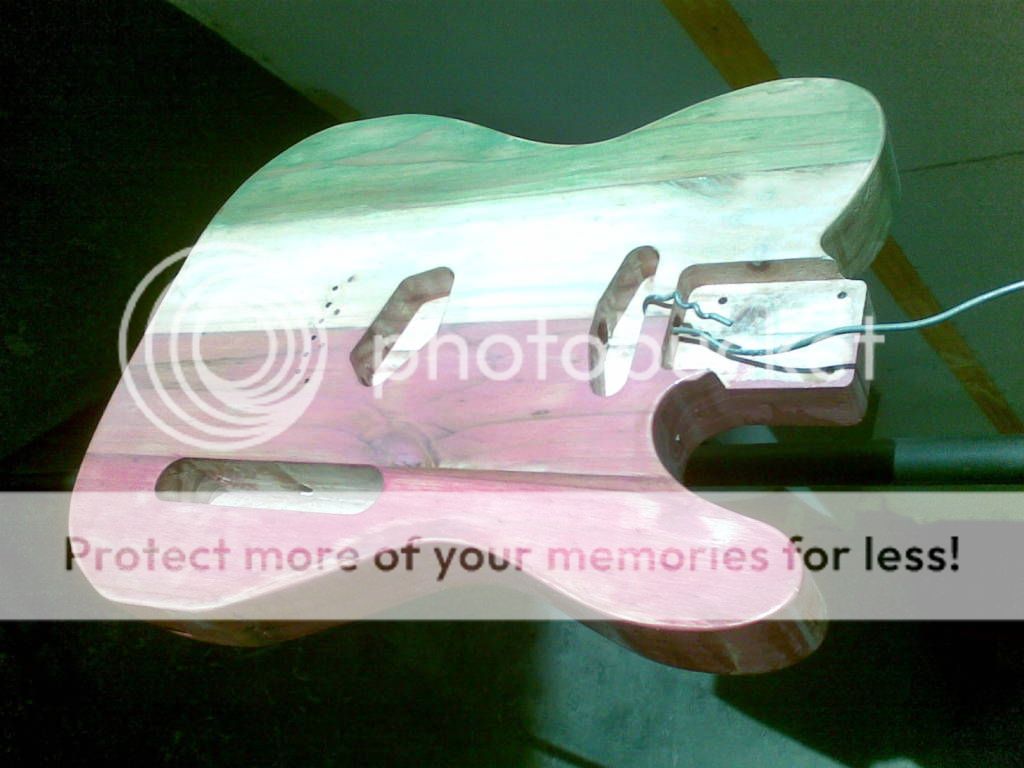

adding my favourite embuia stain i will sand out again just to show the grain

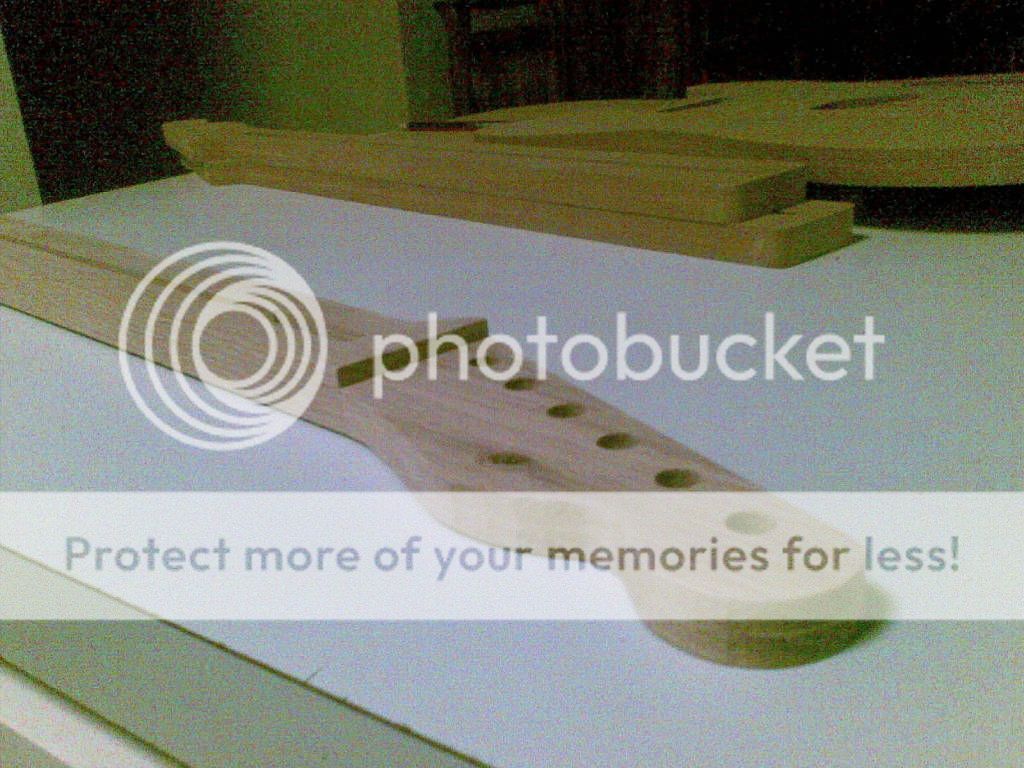

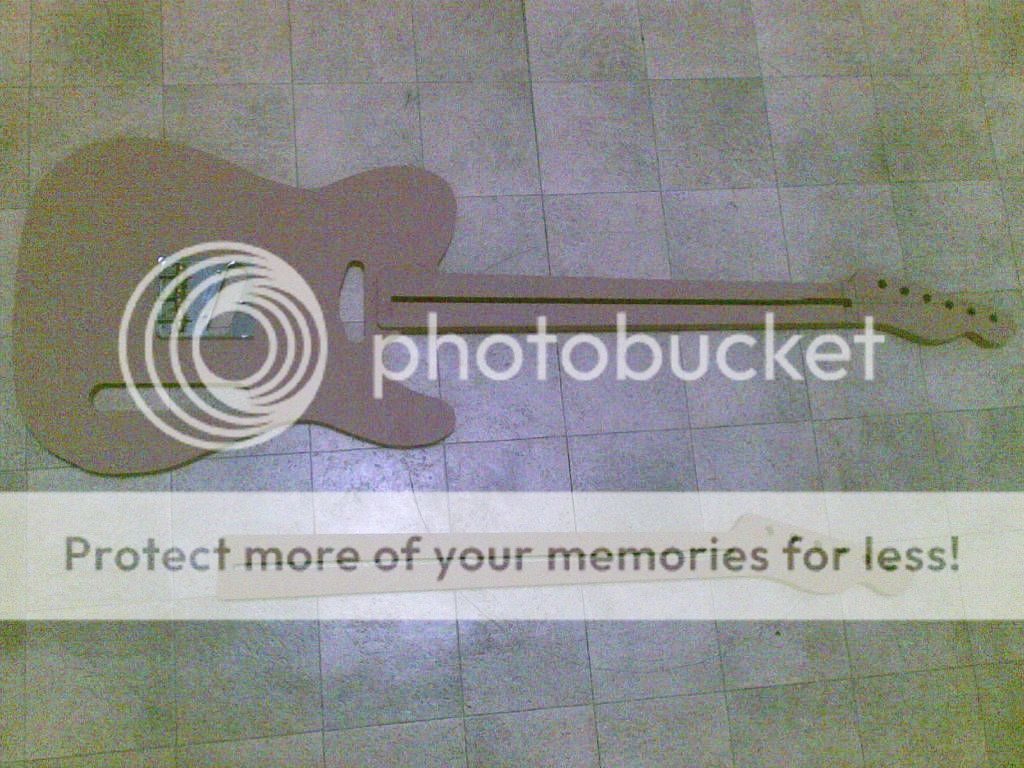

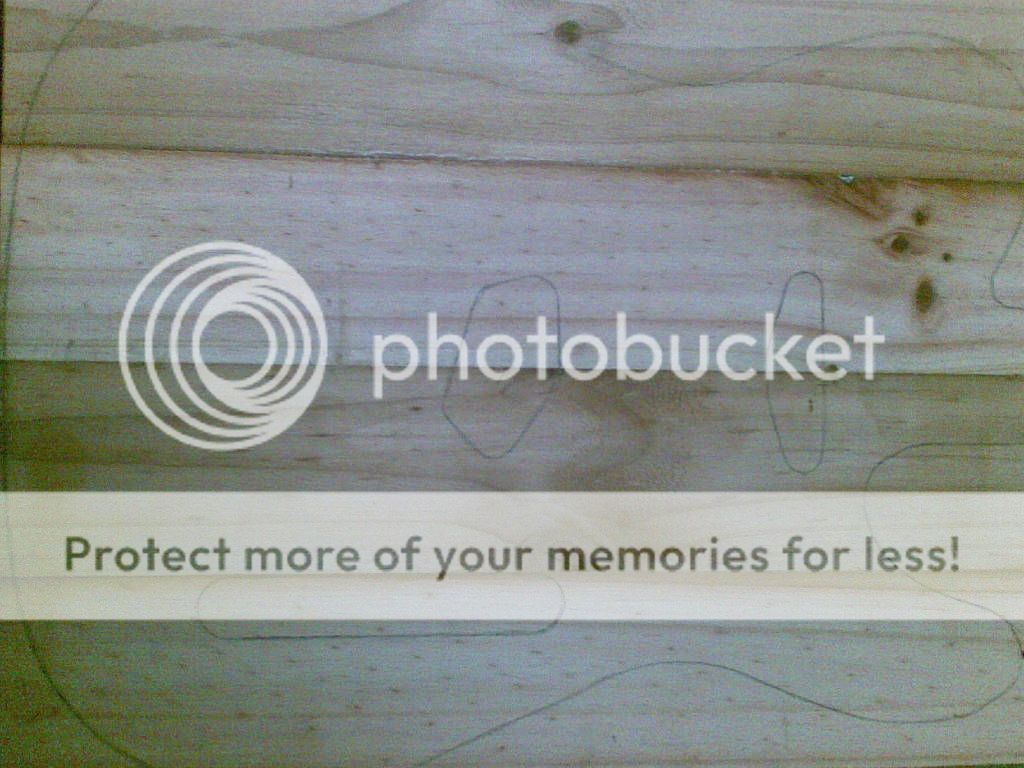

checking if my template works

waiting for oil to dry

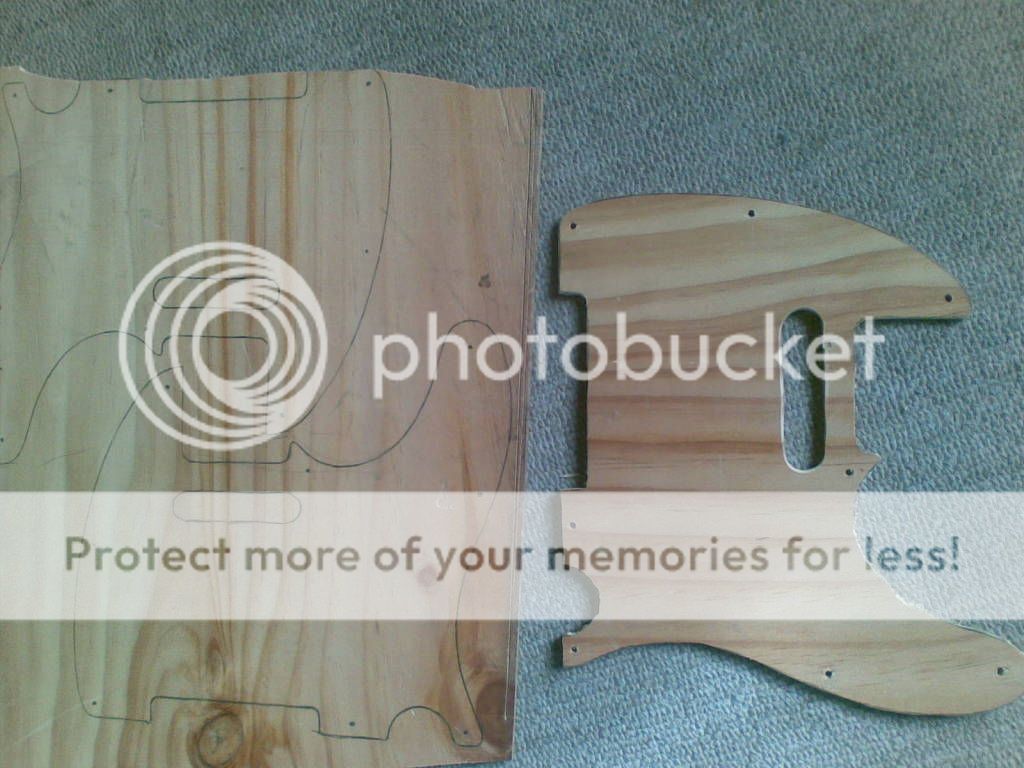

and the scrathplate i am yet to finish, i want to stain it white or something:
